What is SSL/TLS protocol and certificate

Guide explaining how SSL/TLS protocols works and what they are.

Posted Mar 8, 2025

TLS protocol messages diagram

By David Ampurua

14 min read

What is SSL/TLS protocol and certificate

On this article you will see an overview of SSL (Secure Sockets Layer) and TLS (Transport Layer Security) protocols. Knowing what they are, what they are used for, and how they work.

Table of contents
What are SSL (Secure Sockets Layer) and TLS (Transport Layer Security)?
Why is SSL/TLS necessary?
How SSL/TLS Secures Communications?
SSL/TLS certificates
TLS handshake process
- Cipher Suites
SSL/TLS history and evolution
Conclusion
References
- Tools

What are SSL (Secure Sockets Layer) and TLS (Transport Layer Security)?

SSL is the direct predecessor of TLS. TLS is an encryption-based Internet security protocol that facilitates data privacy and security on client/server communication.

SSL and TLS are often used interchangeably due to their close relationship, with some referring to SSL as TLS and others SSL/TLS.

Also, TLS does not require the two parties to coordinate in advance and out-of-band of the TLS session, for securing the session.

The most common use case is the encrypting the communication between web applications and servers.

A website that implements TLS on top of HTTP has HTTPS in its URL instead of HTTP.

http vs https comparative diagram

Why is SSL/TLS necessary?

Initially, data on the Web was transmitted in plain text so anyone could read it if they intercepted the message. For example, if a user placed an order online and entered their credit card number on the website, that credit card number traveled over the Internet without being hidden.

In addition, cibercriminals will often try to create fake websites to trick users and steal data.

Another very common attack is the “man-in-the-middle”, which manipulates data in transit.

How SSL/TLS Secures Communications?

The TLS protocol has three main functions:

Encryption: Hides the data being transferred from third parties, providing privacy and confidentiality (see eavesdropping).
Authentication: Thanks to the process called handshake, ensures that the parties exchanging information are who they claim to be.
Data integrity: Digitally signing the data, verifies that the data has not been falsified or tampered with (see message forgery).

Encryption

Symmetric Encryption: TLS encryption method

TLS uses symmetric encryption for data encryption. This means that both, the client and the server, use the same encryption key (called shared encryption keys) for encrypt and decrypt data.

TLS uses two DEKs for a TLS session, one for each direction of communication.

A key uses for data encryption is called DEK (Data Encryption Key)

TLS uses a different encryption key for Each direction

Once the TLS connection its done, the two entities generate a new pair of DEK keys (also know as session keys) and these keys are used to encrypt/decrypt data throughout the session. When the connection end the keys expire.

How DEKs are generated

The keys are “independently” created at both end during the TLS handshake.

sequenceDiagram
    %% TLS encryption keys generation process
    participant Client
    participant Server

    Client-->Server: *during the handshake*

    note right of Server: Step 1
    Client-)Server: Client random (async)
    Server-)Client: Server random (async)

    note right of Server: Step 2
    Client->>Server: Premaster secret

    note right of Server: Step 3
    Client->Server: Independent Master Secret generated
    Client->Server: Shared encryption keys generated

Generation steps:

Random number generation: The client and server generate a random number (called client random and server random respectively) and send it to each other.
Premaster secret generation: Once the client has the server random generate another random number (called premaster secret). To send this number to the server the client used asymmetric encryption.

Asymmetric encryption uses a public-private key pair for encryption, where the two encryption keys are related; A message encrypted using either key can be decrypted using the other key.
The client uses the server’s public key, obtained from the server’s certificate, to encrypt the premaster secret, before sending it to the server. The server decrypts it using the related private key it holds on its side.

Master secret and keys generation: Using client random, server random and premaster secret client and server create the Master secret. Both use the master secret to generate the session keys.

Key name	Definition
Client MAC Key	The secret data used to authenticate data written by the client
Server MAC Key	The secret data used to authenticate data written by the server
Client write key	The key used to encrypt data written by the client
Server write key	The key used to encrypt data written by the server

MAC - Message Authentication Code

Authentication

TLS assures the client of the server’s identity. To do so, at the beginning of the connection client request server’s public key certificate.This certificate, preconfigured on the server side, binds the server’s identity (DNS name, etc.) to its public key.

Authentication occurs during the TLS handshake.

TLS has two type of authentication:

One-way: Only the client who verifies the identity of the server.
Two-way (mutual authentication): Both verify each other’s identity.

Data integrity

The idea is not only to encrypt the message and verify the identity of the client and server, but also to authenticate the content of the encrypted message itself.

TLS ensures that the server receives the same message that the client has sent, and the other way around. TLS use a MAC (Message Authentication Code) algorithm for message integrity and authenticity. It detects any loss, deliberate modification, or tampering of messages during data exchange.

Message Digests

To understand the MAC, it is first necessary to know what a message digests is. A message digest is a one-way and irreversible cryptographic hash of a message.

To create the hash a cryptographic a hash function (e.g. MD5, SHA-1, SHA-256…) is used.

Steps to send a message:

Get the hash code of the data. The sender use a message digest algorithm.
Send the data with the obtained hash added to it.

To verify the data by the receiver:

Use the received data to create an other hash code.
Compare obtained code with the sended one.
- ✔️ If they are the same, the data is intact.
- ❌ If they aren’t the same, something change in transit on the data.

Message digest diagram

The problem is that, as the data is not encrypted, an attacker can modify the data and attach a new hash on the journey, and the receiver won’t know that the data has changed.

Message Authentication Code (MAC) and Hash-Based MAC (HMAC)

A MAC is like a message digest, but it also uses the shared encryption key in the process of computing and verifying the hash. And HMAC is a newer type of MAC algorithm that uses a cryptographic hash function internally for generating the MAC.

Steps to send data:

Sender’s plaintext data goes through a symmetric encryption algorithm. The encryption algorithm need as input:
- The data.
- The sender’s shared key.
- A random nonce or an initialization vector (IV).
Generate the MAC. The MAC algorithm need as input:
- The encrypted data.
- The sender’s shared key.
- The nonce or the initialization vector (IV).

The MAC algorithm depend on the encryption algorithm:
GMAC if AES-256-GCM is used.
POLY1305 does with CHACHA20.

Add the MAC to encrypted data and send it.

MAC authenticated encryption diagram

To verify the data by the receiver, it need to make the reverse process:

Use the received data to create an other MAC code.
Compare obtained MAC with the sended one.
- ✔️ If they are the same, the data is intact.
- ❌ If they aren’t the same, something change in transit on the data.
If the MAC is correct decrypt the data as viewed [earlier].(#symmetric-encryption-tls-encryption-method)

Note that the same nonce is used in the encryption and decryption process. Usually the nonce is padded to the encrypted message before sending to the receiver.

MAC authentication and decryption encryption diagram

The MAC key used for data that the client send is called the Client MAC Key, in the same way the server’s key is called Server MAC Key (On How DEKs are generated more info).

SSL/TLS certificates

To know more about certificates check PKI (Public Key Infrastructure) as a starting point.

What is an certificate?

A digital certificate is like an passport that proves someone is who they say they are. There is where the server puts his public key. This certificate prevent a man-in-the-middle attack that swaps the server public key.

An TLS certificate is a specific type of X.509 digital certificate format stored and displayed by a server.

Contents of TLS Certificates

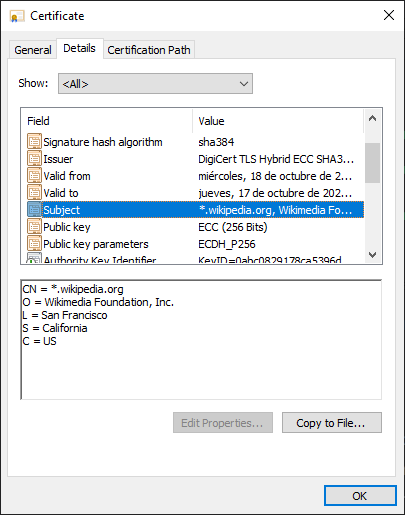

Based on the certificate of the wikipedia website (as of 30/05/2024), you can see all its parameters.

Wikipedia certificate

Some of these parameters are common to all X.509 TLS certificates. The most representative onces are:

Parameter	Description

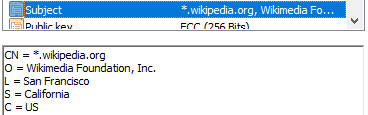

Subject	Represents the entity that the certificate is assigned to
Valid from/to	Period during which the certificate is valid

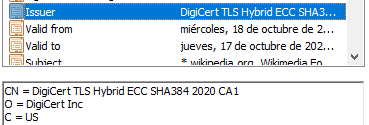

Issuer	Represents the name of the CA that has signed this certificate

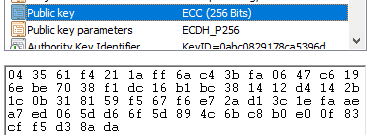

Public Key	Shows the public portion of the public-private key pair used for asymmetric encryption and digital signatures
EKU	Defines the purpose for which the public key in the certificate is intended to be used

Where:

CN = Common name. Part of the distinguished name (DN)
O = Organization
OU = Organizational Unit
L = Location
S = State
C = Country.

Types of web SSL/TLS certificates

Exist three types of web TLS certificates:

Single Domain Certificates: Applies only to one domain. All pages on this domain are also secured (www.example.com/about), BUT it doesn’t work for subdomains (wiki.example.com).
Wildcard Certificates: For a single domain and all its subdomains.
Multi-Domain Certificates (MDC): Lists multiple distinct domains on one certificate. Domains that are not subdomains of each other can share a certificate.

TLS certificate types

Levels on web domains SSL/TLS certificates

An SSL certificate from any of these validation levels provides the same degree of TLS encryption; the only difference is how thoroughly the CA has authenticated the organization’s identity.

Exist three levels on web TLS certificates, from lowest to highest:

Domain Validation Certificates: The least-stringent level of validation, it is only necessary to prove that you own the domain. It’s the cheapest validation.
Organization Validation Certificates: Involves a manual research process by the CA. The certificates will contain the name and address of the organization, which makes them more reliable.
Extended Validation Certificates (MDC): Involves a full background check of the organization by the CA; ensuring that it exists, that it is legally registered as a company, that it is actually present at the address it indicates… these certificates are necessary for a website’s address to turn the browser URL bar green.

Quick Introduction to Certificate Authorities (CA)

Certification authorities are trusted third parties that help to prevent the creation of fake digital certificates. A certificate must be verified and signed by a certificate authority to be considered reliable.

Chain of Trust model

In reality, there’s a chain of certificate authorities. There is a root certificate authority, who signs their own certificate, and signs the certificate of an intermediate certificate authorities. And a intermediate CA can sign the certificate of other intermediate authorities, or they can sign the end-user certificate.

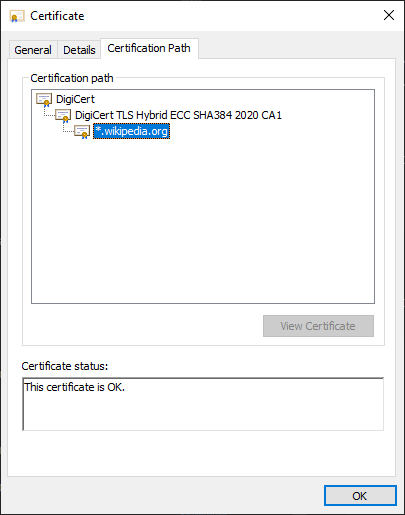

wikipedia’s certificate certification path

The operating systems and browsers store a list of certificates of trusted root certificate authorities to easily verify the authenticity of all certificates.

Self-Signed Certificates or Direct Trust model

When a user or developer signs his own certificate it is called self-signed certificate. As it is not a CA it is not considered a secure certificate for the rest of the people, but it is useful for testing in the first steps of a development that needs TLS certificates.

TLS handshake process

There are three type of TLS handshake:

Anonymous
Using Certificates for Server Authentication only.
Mutual Authentication (Certificates Exchanged on Both Sides).

TLS’s different handshakes step-by-step

Once TCP communication is done, client send ClientHello message to server. Contains information about:
- TLS version the client supports.
- The cipher suites it’s equipped with.
- The client random (A random byte string, more info in this section).
Server respond with ServerHello, saying:
- Selected TLS version.
- Chosen cipher suite.
- The server random.
(On Anonymous handshake) Server sends its public key in ServerKeyExchange message.
(Rest handshakes) Server sends its certificate in the Certificate message. Contains the server’s public key and some identity information.
(On Mutual handshake) Server ask to the client to authenticate on CertificateRequest message.
Server end its part of the negotiation process sending ServerHelloDone message.
Client sends its part of the key agreement protocol (depending on the selected cipher suite), which may be a public key, a Pre-Master Secret, or some other necessary information in a ClientKeyExchange message.
(On mutual handshake) Client sends a CertificateVerify message that contains a signature over all the previous handshake messages. This message serves as proof that the client owns the certificate.
to 12. Both the client and the server exchange these messages, indicating that they are moving to a secured, encrypted communication, using the parameters already exchanged.

Cipher Suites

A cipher suite is a named combination of cryptographic algorithms that the client/server may use during the TLS handshake.

Servers must restrict the cipher suites that they allow as SSL/TLS includes support for cipher suites that provide minimal or even no security at all.

Here some examples:

TLS v1.2 cipher suite example image

TLS v1.3 cipher suite example image

SSL/TLS history and evolution

The development of SSL starts in 1995 by Netscape. With the purpose of ensuring privacy, authentication, and data integrity in Internet communications.

In 1999 IETF (the Internet Engineering Task Force) proposed an update to SSL. Since then, IETF took the development and Netscape was no longer involved. The differences between the final version of SSL (3.0) and the first version of TLS are not drastic, the name change to indicate that it was no longer associated with Netscape.

Because of this history, the terms TLS and SSL are sometimes used interchangeably.

gantt
  title SSL and TLS protocols: History and development
  dateFormat  YYYY-MM-DD
  axisFormat %Y
  todayMarker off

  section Netscape<br>as developer
  SSL v1 was never released for security reasons : milestone, 1995-02-01, 1995-02-01
  SSL v2 | deprecated-RFC 6176 : done, 1995-02-01, 2011-03-01
  SSL v3 | released-RFC 6101 | deprecated-RFC 7568 : done, 1996-11-18, 2015-06-01

  section IETF<br>as developer
  TLS v1 | released-RFC 2256 | deprecated-RFC 8996 : done, 1999-01-01, 2021-03-01
  TLS v1.1 | released-RFC 4346 | deprecated-RFC 8996 : done, 2006-04-01, 2021-03-01
  TLS v1.2 | released-RFC 5246 : 2008-08-01, 2025-06-01
  TLS support for SSL discontinued (RFC 6176) : milestone, 2011-03-01, 2011-03-01
  TLS v1.3 | released-RFC 8446 : active, 2018-08-01, 2025-06-01

Conclusion

SSL and TLS are mostly the same, but TLS is updated.
They are protocols to create secure client/server communications.
TLS uses:
- Symmetric/shared-key encryption for confidentiality.
- A certificate validation process for authentication.
- MAC (message authentication codes ) for data integrity.
